Thuis /Producten/industriële ventilatorventilator/190 mm Diameter Industrial Blower Fan 0~10V PWM EC 230V Smart Fan Plastic Motorized Impeller For Centrifugal Fan

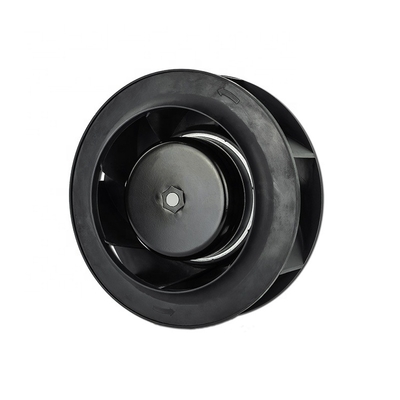

190 mm Diameter Industrial Blower Fan 0~10V PWM EC 230V Smart Fan Plastic Motorized Impeller For Centrifugal Fan

1 Piece
MOQ
$60.18(1 - 999 Pieces) $53.15(>=1000 Pieces)
Prijs
190 mm Diameter Industrial Blower Fan 0~10V PWM EC 230V Smart Fan Plastic Motorized Impeller For Centrifugal Fan
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Type: Centrifugal Fan
Electric Current Type: AC
Blade Material: Plastic
Mounting: FREE STANDING
Model Number: BC190A-E072B6-00
Warranty: 1 Year
After-sales Service Provided: Video technical support
Material: Impeller made of PA66
Bearing: Ball bearing
Speed control: Control input 0~10V PWM
Working Temp: -25~ +60°C
Insulation Class: B
Protection Class: IP53
Approvals: CCC, CE
Certificering: ce, CCC
Basis informatie
Certificering: ce, CCC
Model Number: BC190A-E072B6-00
Betalen & Verzenden Algemene voorwaarden
Productomschrijving
PRODUCTS DESCRIPTION
Material
Impeller made of PA66
Bearing
Ball bearing
Speed control
Control input 0-10V PWM
Working Temp.
-25~ +60°C
Insulation Class
B
Protection Class
IP53
Approvals
CCC, CE
COMPANY PROFILE
20YEARS+ Industrial experience:
2001-2003: Fan blade design, impeller fluid flow development
2004-2006: Shaded-pole motor
2007-2017: BLDC & PMSM motor
2017-2021: Integrated fan motor, fluid flow, electric control to manufacture centrifugal fan and axial fan

Quality Control System:
MSA, ISO9001, Traceability system, PDCA
100% full inspection before shipment

About SunxFan:
* Design on motor, fluid flow, electric control
* Manufacture all the key components by ourselves
* Process management: IPD
* Product Reliability: Type test, life expectancy test and running test.

We manufacture a range of product:
※133mm,175mm,190mm,220mm,225mm,250mm,280mm,320mm,355mm backward curved centrifugal fan
※120,140,160,180mm single inlet forward curved centrifugal fan
※133, 146mm double inlet forward curved centrifugal fan
※200, 220, 225, 250, 280mm axial flow fan
※Motor type: 115V/230V AC, 24/48V/310VDC, 115/230V/380V EC type
