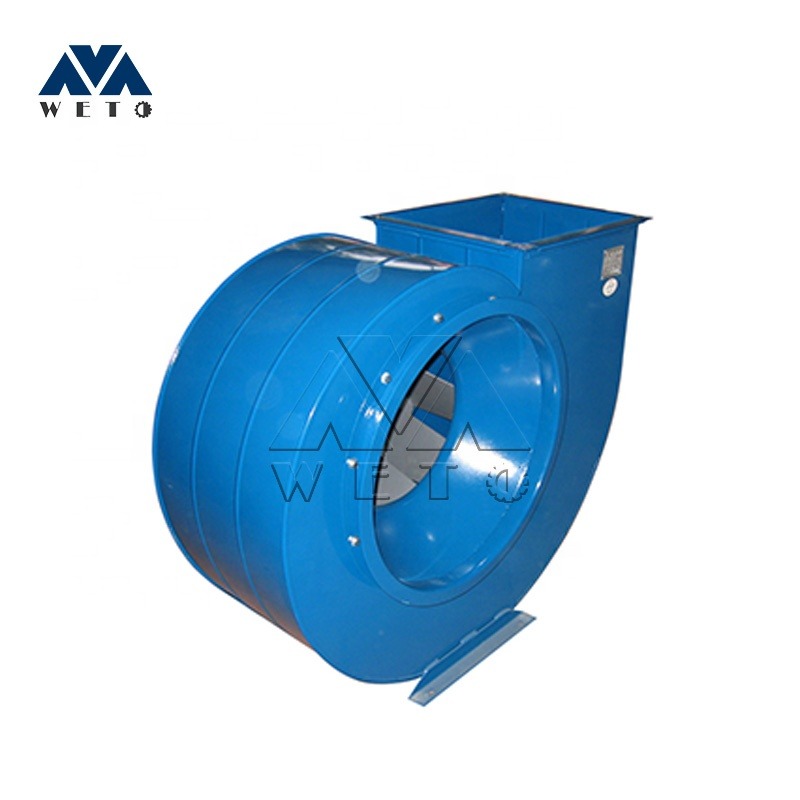

Industrial Ventilation Good Quality Blower Explosion Proof Centrifugal Fans

1 Set
MOQ
Industrial Ventilation Good Quality Blower Explosion Proof Centrifugal Fans
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Type: Centrifugal Fan
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Food Shop, Printing Shops, Energy & Mining
Electric Current Type: AC
Blade Material: Cast Iron
Mounting: FREE STANDING
Model Number: WTB4-72
Voltage: 1.5KW-7.5KW
Warranty: 1 Year
After-sales Service Provided: Field maintenance and repair service
Certificering: ce, CCC
Product name: industrial centrifugal blower
Application: Industrial Ventilation
Size: according to your inquiry
Blades Diamter:: according to your inquiry
Motor: Chinese motor/Siemens Motor/ABB motor
Color: As you wish
Usage:: blowing air
Impeller material:: Cast Iron/Stainless Steel
Frequency: 50HZ/60HZ
Total pressure:: 1436~1811Pa
Basis informatie
Certificering: ce, CCC
Model Number: WTB4-72
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Wooden cases or according to customers' requirements.
Supply Ability: 2500 Set/Sets per Day
Productomschrijving
Product Description





Structural performance

This motor driven type series fan is mainly composed of impeller, casing, air inlet, motor and other parts. In addition to the above structure,
6C and 8-20 have a transmission part, which has the highest rate and low noise. Stable performance curve.
1. Impeller-It consists of 10 backward tilting airfoil blades, curved wheel cover and flat back plate. It is made of steel plate
(cast aluminum alloy for B4-72). It is highly efficient after dynamic and static balance correction and operation test Stable and
reliable operation and good air performance. 2. Chassis-made into two different forms, of which 2.8-12 # chassis is made as a
whole and cannot be folded. 16—20 # is made into three-open type. In addition to being divided into two halves according to the
horizontal, the upper half is divided vertically into two halves along the center line. They are linked by bolts so that the
impeller can be put in or taken out during installation and maintenance.
3, air inlet-the overall structure, installed on the side of the fan, the cross-section parallel to the axis is a curved shape,
the role is to make the air flow into the impeller smoothly, and the loss is small.
4. Transmission-It consists of main shaft, bearing box, rolling bearing, pulley or coupling.
