Thuis /Producten/Centrifugaalventilatorventilator/Hotels 97x97x33mm DC Fan 4 Inch DC 12v 24v 48v 9733 Centrifugal Blower Fan With Pwm Control

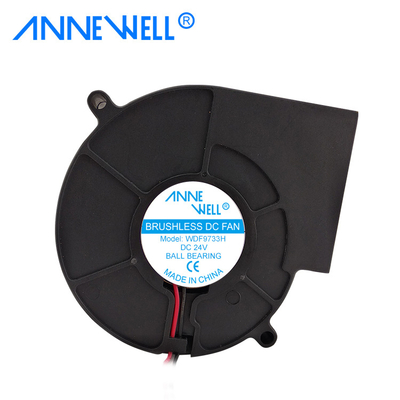

Hotels 97x97x33mm DC Fan 4 Inch DC 12v 24v 48v 9733 Centrifugal Blower Fan With Pwm Control

500 Pieces
MOQ
$2.40(500 - 999 Pieces) $2.25(1000 - 4999 Pieces) $2.18(>=5000 Pieces)
Prijs
Hotels 97x97x33mm DC Fan 4 Inch DC 12v 24v 48v 9733 Centrifugal Blower Fan With Pwm Control
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Type: Centrifugal Fan
Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction works , Energy & Mining
Blade Material: Plastic
Mounting: FREE STANDING
Voltage: 24v
Warranty: Unavailable
After-sales Service Provided: No after-sales service
Certificering: ce, CCC
Product name: Brushless Dc Fan
Size: 97x97x33mm
Operation Temperature: -10℃~70℃
Bearing Type: Ball Bearing
Material: Plastic Blade Plastic Frame
Motor: Copper Motor
Air Pressure: 9.38~35.36mm(H2O)
Noise: 44.5~53.5dBA
Weight: 142.3g
Current: 0.50~1.50A
Basis informatie
Certificering: ce, CCC
Betalen & Verzenden Algemene voorwaarden
Packaging Details: paper carton
Supply Ability: 80000 Piece/Pieces per Month
Productomschrijving

ModelWDF9733Size97x97x33mm
FramePlastic Blade/Plastic FrameImpellerPBT+30%GF
Bearing TypeBall BearingLead WireUL Type
MotorCopper MotorInsulation

Impedance Protected

Reverse Polarity Protected

Weight142.3gRated Voltage24v
Application3D printers,Stage lighting,VR equipment,Intelligent Manicure machine, Projector,High-speed camera,Head mounted display,Automotive industry, Cabinet industry, Power industry,UAV application, Electric forklift,LED lighting industry, Hand held air detector,Charging machine,Nebulizer.Electromagnetic oven,Humidifier,Smart toilet,Intelligent household lampblack machine,Air purifier,Car GPS,Car LED lamp,Aromatherapy machine.CPU cooler,Case.









Listed
Model		Bearing
System		Rated
Voltage		Operation
Voltage		Rated
Speed		Air
Flow		Air
Pressure		Noise
Level		Available Features(Optional)Weight
VDCVDCRPMCFMmmH2OdBATachometer
Output		Rotation
Detector		Thermal
Control		PulseWidth
Modulation		G
WDF9733YSleeve/Ball1210.8~13.2450029.8135.3653.5√ √  √ 142.3
WDF9733HSleeve/Ball1210.8~13.2400026.1826.4953.3√ √  √ 142.3
WDF9733MSleeve/Ball1210.8~13.2320021.0515.4649.5√ √  √ 142.3
WDF9733LSleeve/Ball1210.8~13.2300019.9413.6847.7√ √  √ 142.3
WDF9733USleeve/Ball1210.8~13.2260016.869.3844.5√ √  √ 142.3
WDF9733YSleeve/Ball2421.6~26.4450029.8135.3653.5√ √  √ 142.3
WDF9733HSleeve/Ball2421.6~26.4400026.1826.4953.3√ √    √ 142.3
WDF9733MSleeve/Ball2421.6~26.4320021.0515.4649.5√ √  √ 142.3
WDF9733LSleeve/Ball2421.6~26.4300019.9413.6847.7√ √  √ 142.3
WDF9733USleeve/Ball2421.6~26.4260016.869.3844.5√ √  √ 142.3



    Q:Are you a factory or trading company?



    A:We are a factory.



    Q:What is the products of our factory ?



     A: The products are Dc cooling fans , Ac cooling fans, Blower cooling fans, Cpu cooling fan, VGA      cooling fan.Our fans from 20mm-220mm . We can also do cooling fans as customers' requirement.



    Q: Do you provide samples ? is it free or extra ?



    A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



    Q: What is your terms of payment ?



    A: It needs to be decided on the basis of the situation.



    Q: How long is your delivery time?



     A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it       is according to quantity.



   Other Dimension
20*20*6mm20*20*10mm25*25*7mm25*25*10mm35*35*10mm40*40*10mm
40*40*10mm40*40*20mm40*40*28mm50*50*10mm50*50*15mm60*60*15mm
60*60*20mm60*60*25mm70*70*25mm80*80*10mm80*80*15mm80*80*25mm
90*90*25mm92*92*38mm120*120*25mm120*120*38mm135*135*38mm140*140*25mm
140*140*38mm150*150*50mm172*150*38mm170*152*51.5mm180*180*60mm200*200*60mm
220*220*60mm225*255*80mm280*280*80mm
