Thuis /Producten/Centrifugaalventilatorventilator/Building Material Shops 97*97*33mm Centrifugal Air 12V DCBlower Fan Blower

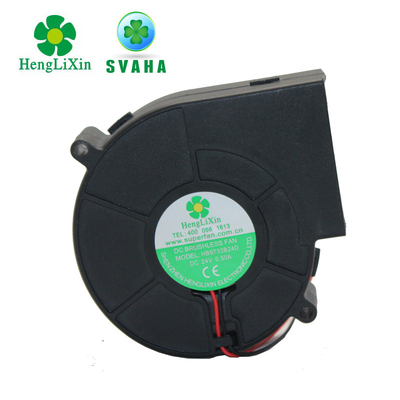

Building Material Shops 97*97*33mm Centrifugal Air 12V DCBlower Fan Blower

500 Pieces
MOQ
$2.90(>=500 Pieces)
Prijs
Building Material Shops 97*97*33mm Centrifugal Air 12V DCBlower Fan Blower
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Type: Centrifugal Fan
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops
Customized support: OEM, ODM
Electric Current Type: DC
Blade Material: Plastic
Mounting: FREE STANDING
Model Number: HB9733B12H
Voltage: 12V
Warranty: 1 Year
After-sales Service Provided: Field maintenance and repair service
Product name: 97*97*33mm 12V Air DCBlower Fan Centrifugal Blower
Size: 97*97*33mm
Color: Balck
Noise: 45dBA
Bearing: Ball
Speed: 3200RPM
Current: 0.57A
Certificering: ce, CCC, RoHS
Basis informatie
Certificering: ce, CCC, RoHS
Model Number: HB9733B12H
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Carton Box
Supply Ability: 10000 Piece/Pieces per Week
Productomschrijving
Our Services
Sample services: Our factory could support 2 pcs free samples,if the samples quantity is more than 2 pcs,we need to receive samples cost.But we will return samples cost to you if you place order in future. Customized services: if the customer need special cooling fans,We can open a new mould for customer. After-sales services: overseas third-party support available.
Product Name
HLX DC BRUSHLESS FANS
Size
size from 15*15*04mm to 200*200*60mm
Voltage
5V, 12V, 24V, 36V, 48V according to customer's requirement
Protection
Up to IP 68
Operating Voltage
10.8~13.2V
Warranty
1 Year
Life
50,000 hrs
Lead time
7~10 Days
Termination
Leadwires or Customerized Terminal
Insulation Resistance
Min 10 megohm at 250 VDC between terminal(+)and housing
Dielectric Strength
Applied AC 500 V for one minute or AC 600 V for 2 Seconds between housing and terminal (+)
Bearing
Sleeve or Ball ( sleeve working time for 30,000 hours, ball working time for 50,000 hours)
Temperature
-10℃~+70℃(Operation), -40℃~+80℃(Storage)
Features
High airflow, Low noise, Long life, Low Power-consumption
Functions
PWM (Pulse Width Modulation)
FG (Frequency Generator / Tachometer)
RD (Rotation Detector)
AR (Auto Restart)
TC (Thermal Control)
